Carbide Welding inserts YT5 / P30 Model B

Name: Carbide Welding inserts YT5 P30 Model B
Brand: RIXIN
Price: 45.00 USD

Brand Name : RIXIN

Model Number : Model B12,B16,20,B25

Certification : ISO9001:2008

Place of Origin : CHINA

MOQ : 10KG

Price : $ 45.00-65.00USD per kilogram

Delivery Time : 7-20 days depending on the quantity

Packaging Details : Packed in carton firstly,and then reinforced with wooden case for outer packing.

Material : Tungsten Carbide, Cobalt

Product Name : Welding Inserts Model B12,B16,20,B25

Application : Cutting tools

Size : Standard

Grade : YT5/P30 ,K05-K20,P10-P30

Hardness : 90.5 HRA

T.R.S : 2200 MPa

Density : 12.9 g/cm³

Contact Now

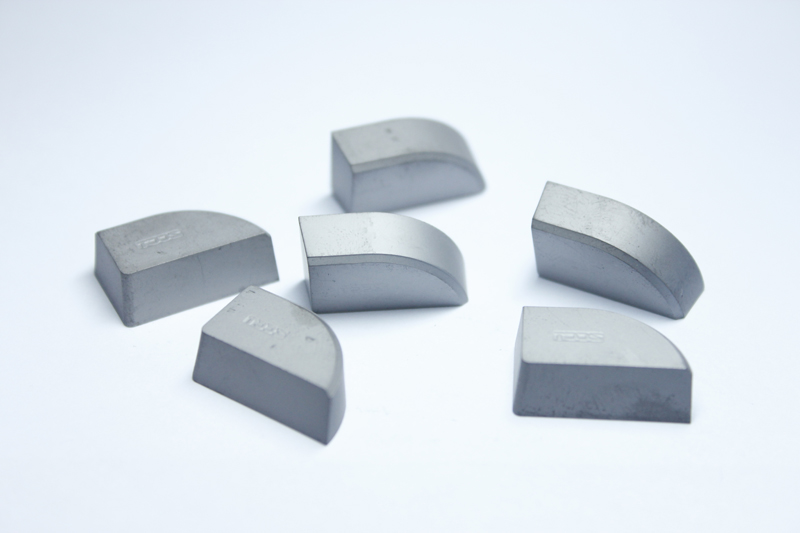

Tungsten Carbide Welding Inserts YT5/P30 Model B

Description:
1, Used for steel, stainless steel, cast steel and cast iron cutting and processing.
2, Good toughness
3, Superior wear resistance & high strength
4, A comprehensive range of types with molds
5, Short deliver period,with some types always in stock
6, Full-automatic press machine,which brings stable quality and high efficiency

Specifications:

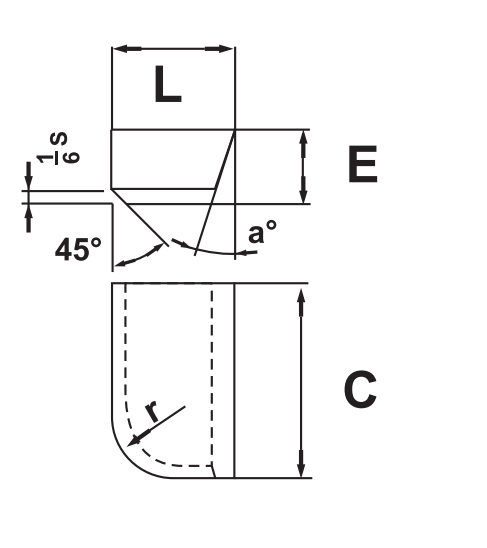

Carbide Welding inserts YT5 / P30 Model B

Type	Dimensions (mm)
Type	L	t	S	r	a°
B12	12	8	5	5	18
B16	16	10	6	6	18
B20	20	12	7	7	18
B25	25	14	8	8	18

Carbide Welding inserts YT5 / P30 Model B

Applications:

Grade	ISO Code	Density	Hardness	T.R.S	Applications recommended
Grade	ISO Code	g/cm3	HRA	MPa	Applications recommended
YM3	K05	15.1	92	1400	Suitable for finishing of cast iron and nonferrous metal.
YM6X	K10	14.95	91.5	1800	The finishing & semi-finishing of cast iron and nonferrous metals and also for the machining of manganese steel and hardening steel.
YM6	K15	14.95	90.5	1900	Suitable for the roughing of cast iron and light alloys and also for the milling of cast iron and low-alloy steel.
YM8	K20	14.8	89.5	2200
YW1	M10	13.1	91.6	1600	Suitable for finishing and semi-finishing of stainless steel and conventional alloy steel.
YW2	M20	13	90.6	1800	The grade can be used for the semi-finishing of stainless steel and low-alloy steel and it is mainly used for the machining of railway wheel hubs.
YT15	P10	11.4	91.5	1600	Suitable for the finishing and semi-finishing for steel and cast steel with a moderate feed rate and rather high cutting speed.
YT14	P20	11.6	90.8	1700	Suitable for the finishing and semi-finishing of steel and cast steel.
YT5	P30	12.9	90.5	2200	Suitable for the heavy duty rough turning of and cast steel with a big feed rate at a medium and low speed under unfavorable working conditions.
